VIBE ANALYZER
VIBE ANALYZER is a top-of-the-line tool designed for detailed vibration analysis in various industrial applications. Its primary goal is to provide accurate and reliable data that help optimize machine performance and prevent unplanned downtime. Thanks to advanced technology and an intuitive interface, VIBE ANALYZER is an indispensable tool for engineers and technicians striving to maximize efficiency and operational safety.
Key Features of VIBE ANALYZER
VIBE ANALYZER is equipped with a range of features that ensure accurate and efficient vibration analysis.
Advanced spectral analysis
It enables a detailed analysis of the vibration frequency components for precise diagnostics.
Real time analysis
Monitor vibrations in real-time for immediate response to operational changes.
User-friendly interface
Intuitive controls that simplify operation even for less experienced users.
VIBE ANALYZER
-
Frequency range of 5–15,000 Hz to capture every machine condition
-
Recording durations of 1, 2, 4, or 8 seconds for rapid or highly detailed measurements
-
FFT resolution from 1 to 0.125 Hz to visualize even the smallest details
-
Time-domain of acceleration and velocity visualize the true machine signal
-
FFT analysis visualize issues such as imbalance or bearing defects
-

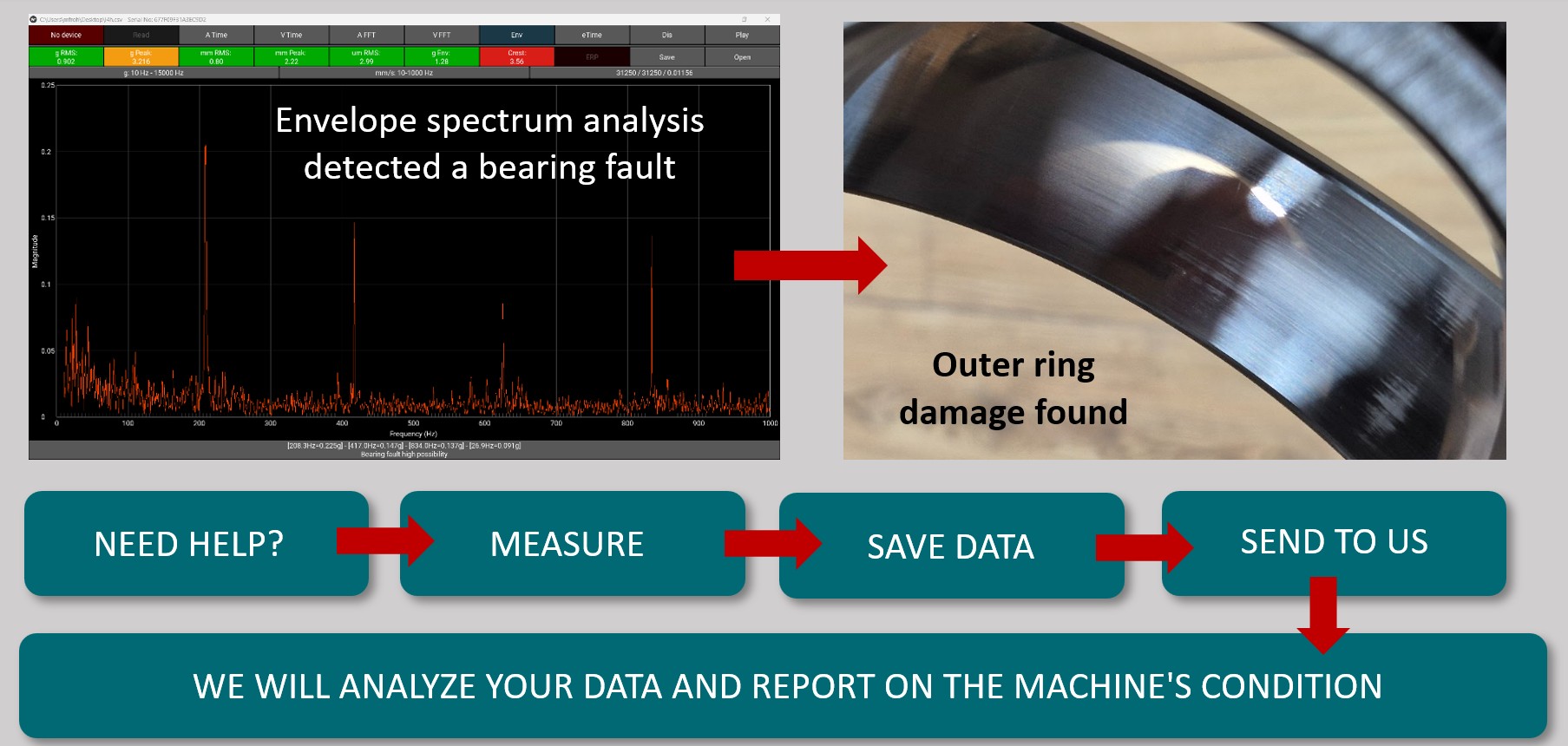

Envelope spectrum identifies potential bearing fault frequencies
-
Displacement time-domain visualize the actual movement of the machine
-

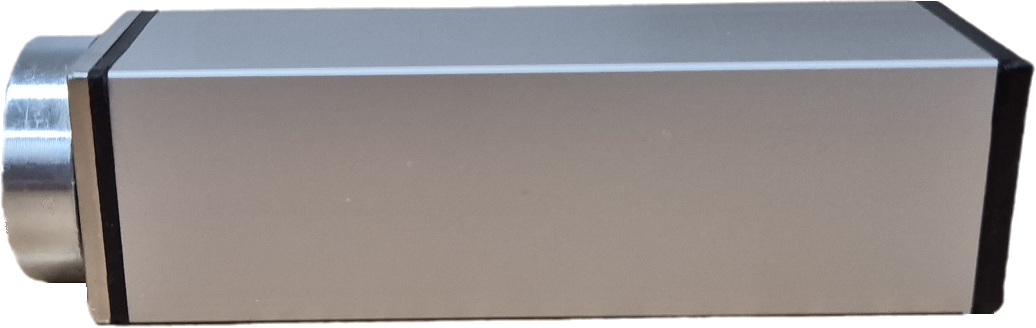

Compact design – 25x25x100 mm, 120 g
-
Connectivity to mobile devices, tablets
-
USB-C interface, battery-free
-
App available for Android and Windows
Specification
- 24-bit Converter: Captures precise data with minimal noise.
- Low-Noise MEMS Accelerometer: Reliable vibration measurement with high sensitivity.
- High Sampling Rate: Up to 30,000 samples per second for detailed signal analysis.
- Adjustable FFT Resolution: FFT resolution from 1 to 0.125 Hz with recording durations from 1 to 8 seconds.
- Wide Frequency Range: 5–15,000 Hz for comprehensive diagnostics.
- Multiple Measurement Metrics: Supports gRMS, gPeak, mm/s RMS, mm/s Peak, Crest Factor, Enveloped g, and deflection in µm RMS.
- Complete Visualization: Time domain recordings, FFT spectra, and envelope analysis.
- Audio Playback: Play back captured signals for intuitive inspection.
- Data Storage: Export measured values to CSV for further analysis.
- Compact Design: Aluminum housing (25 × 25 × 80 mm) weighing only 120 g.
- USB-C Power and Connectivity: Powered and connected via mobile devices, tablets, or PCs.
- Multi-Platform Compatibility: Apps available for Android, Windows, and Linux.
Hardware
Accelerometer:
- Range: ±100 g
- Frequency Response: Up to 23 kHz
- Resonant Frequency: 42 kHz
- Ultra-Low Noise Density: 75 μg/√Hz
- Built-in Self-Test for Diagnostics
- Impact Resistance: Up to 10,000 g
Processor:
- Core: ARM Cortex-M7 @ 600 MHz
- Memory: 1024 KB RAM (512 KB high-performance), 1984 KB Flash
- Support for Mathematical Operations: 32 and 64-bit floating point
- USB Speed: 480 Mbps
ADC (Analog-to-Digital Converter):
- Resolution: 24 bits
- Noise-Free Performance: Up to 23 bits effective resolution
- Delta-Sigma Architecture for Accurate Measurement and Filtering
- Sampling Rate: Up to 32,768 samples per second (SPS)

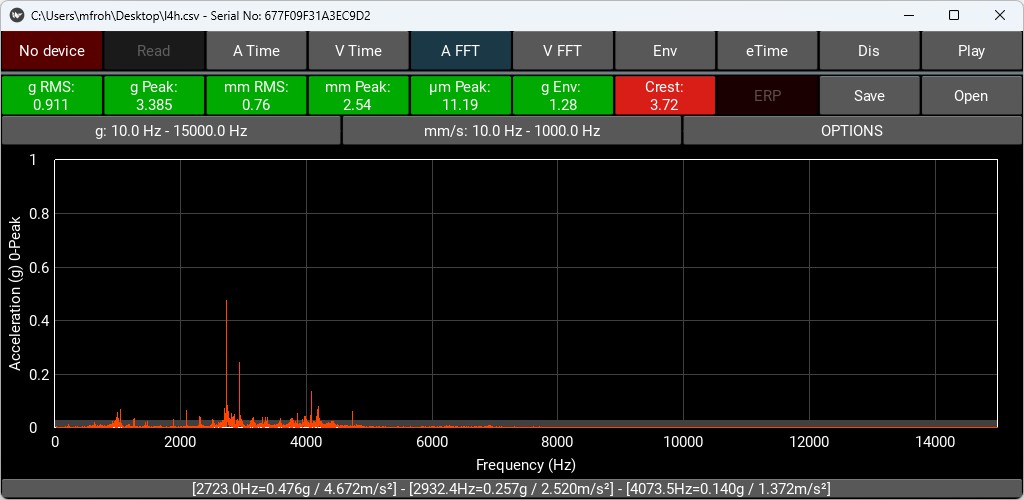

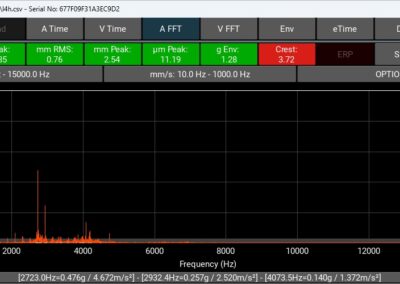

Acceleration-FFT

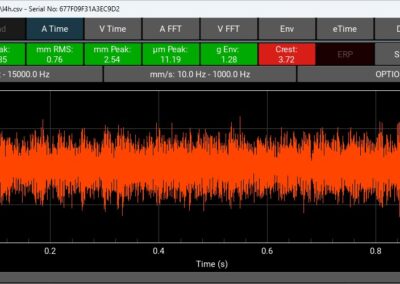

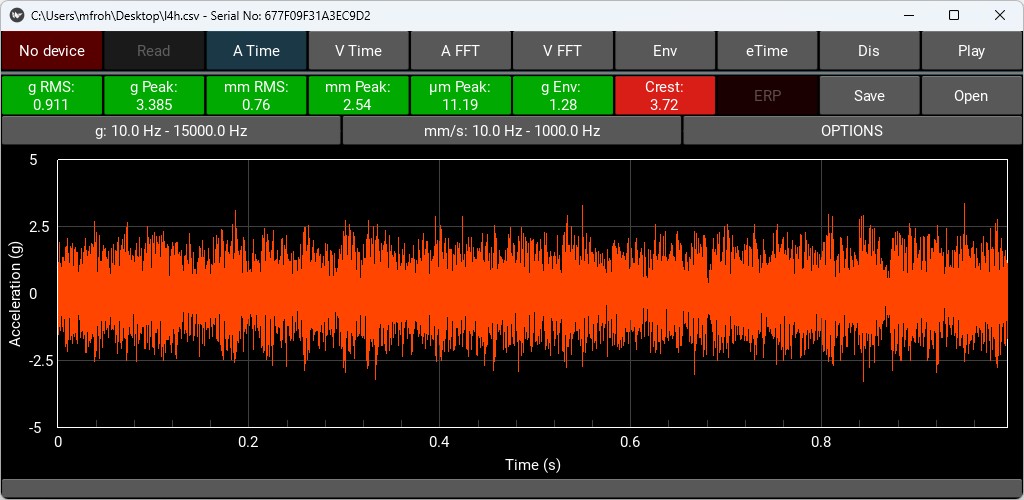

Acceleration-Time-Domain

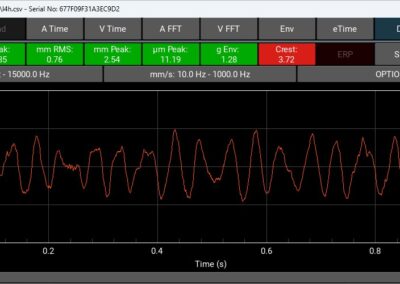

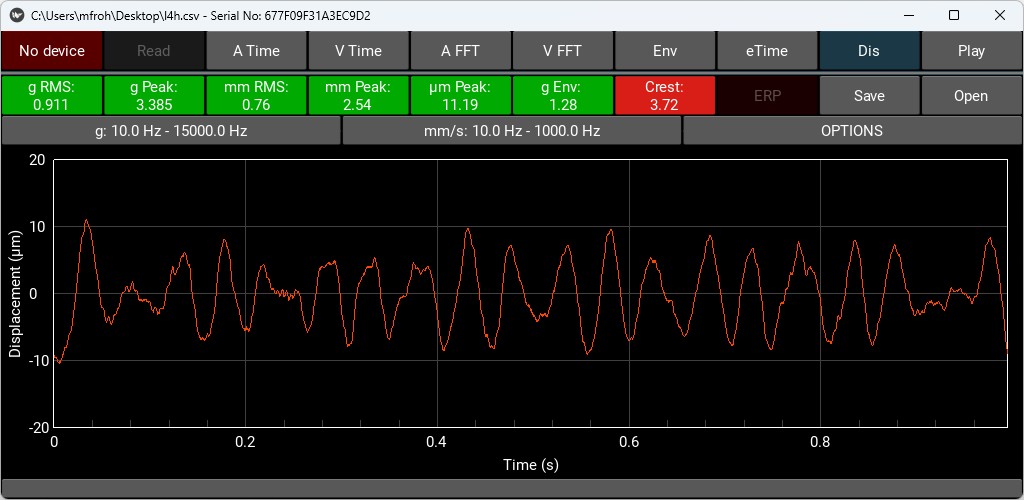

Displacement-Time-Domain

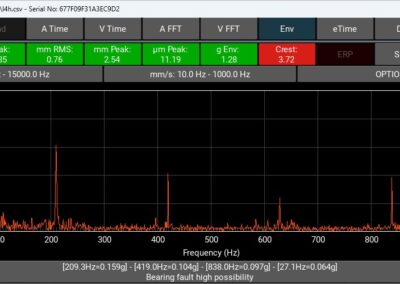

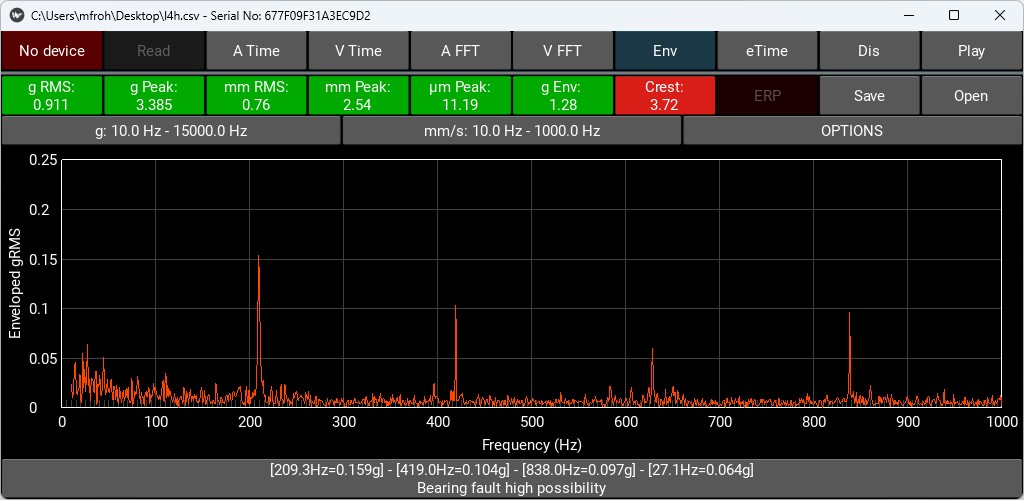

Enveloped-FFT

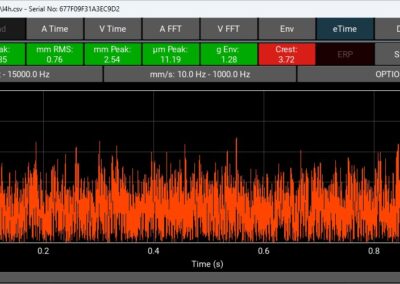

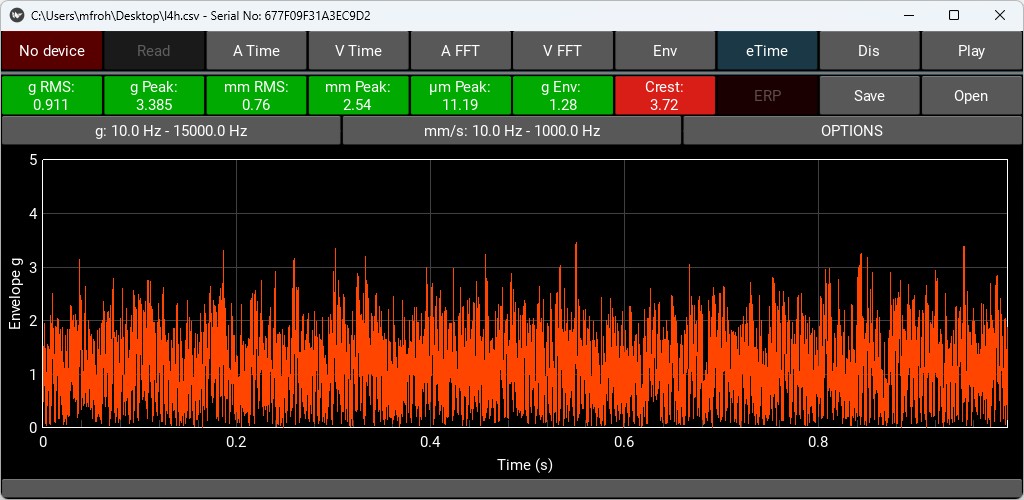

Enveloped-Time-Domain

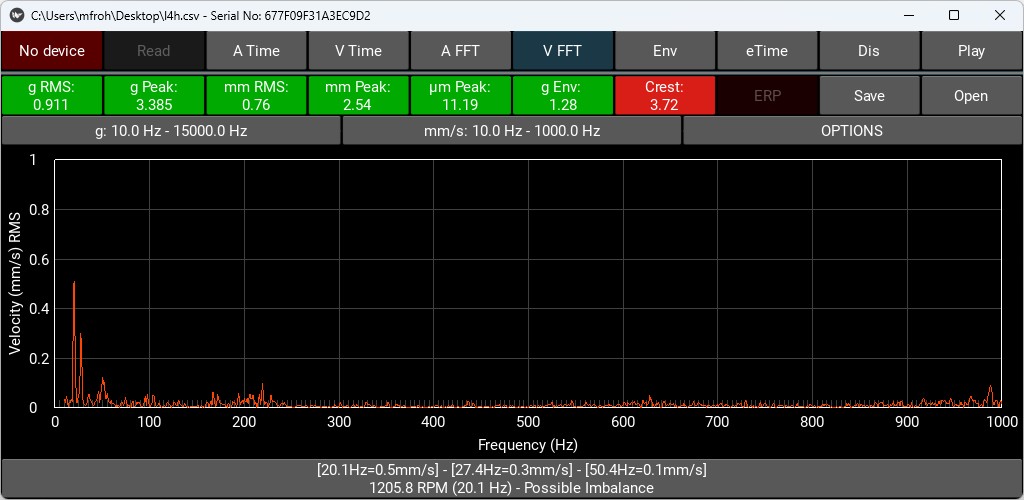

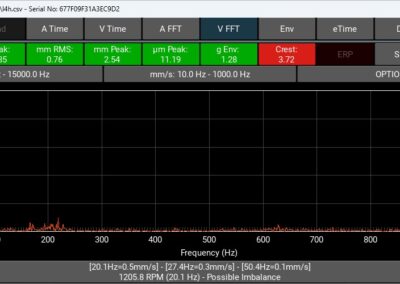

Velocity-FFT

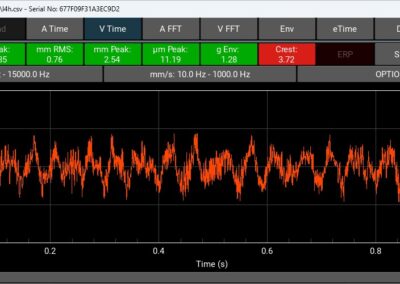

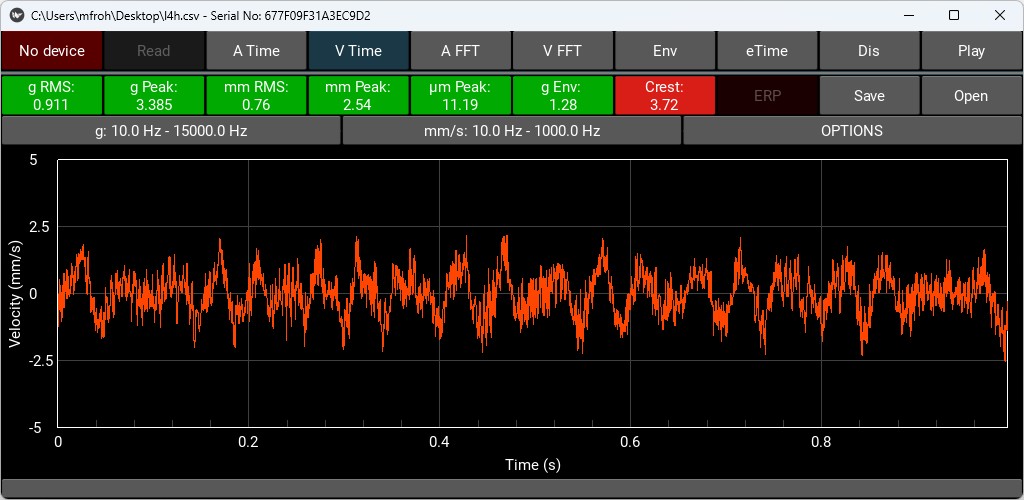

Velocity-Time-Domain
Would you like to have your machines under control?
Contact us for more information or schedule a personal meeting and a live demonstration of the VIBE ANALYZER. We’ll be happy to show you its features and practical applications.
